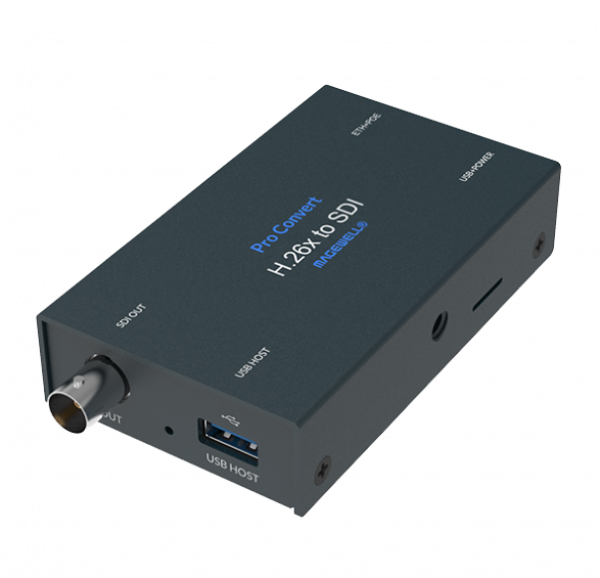

Pro Convert H.26x to SDI

Šifra: 29
WebCena: 47.736,00 rsd.
Cena je bez PDV-a

Output Features

  • Max output: 1920x1080p60. Supported output formats are:
    • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
    • 1920x1080i 50/59.94/60
    • 1280x720p 23.98/24/25/29.97/30/50/59.94/60
    • 720x576i50
    • 720x480i59.94
  • Support YUV BT.601, YUV BT.709 signal
  • Support 48KHz 8-channel audio output

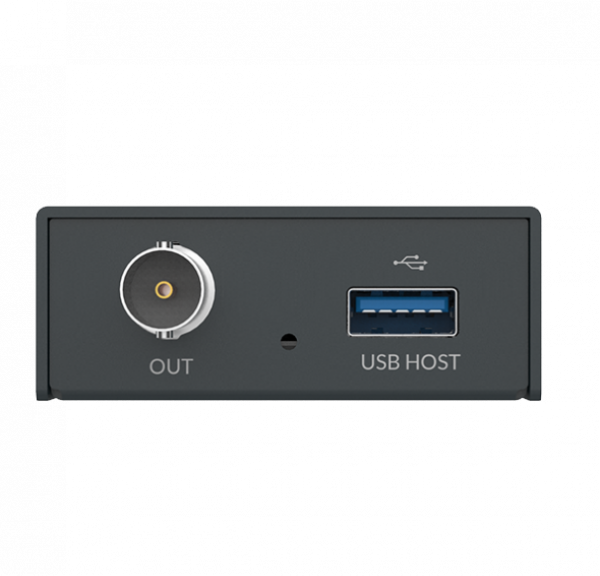

  • SD/HD/3G-SDI BNC output
  • Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards
  • Output 3G-SDI signal and transmitted distance greater than 100m (328ft)

Decoding Features

  • Decoding up to 2Kp60 streams of RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP protocols
  • H.264/H.265 video decoders
  • AAC/MP3 audio decoders

Web UI Management

  • Provide comprehensive information regarding the device and decoded signals in real-time
  • Allow to configure how a signal is processed and decoded, including:
    • OSD setting, deinterlacing, resolution, frame rate, AR conversion
    • audio gain, sample rate and audio channel mapping
    • network connection
  • Update firmware
  • Support USB RNDIS/ECM
  • Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provide HTTP APIs

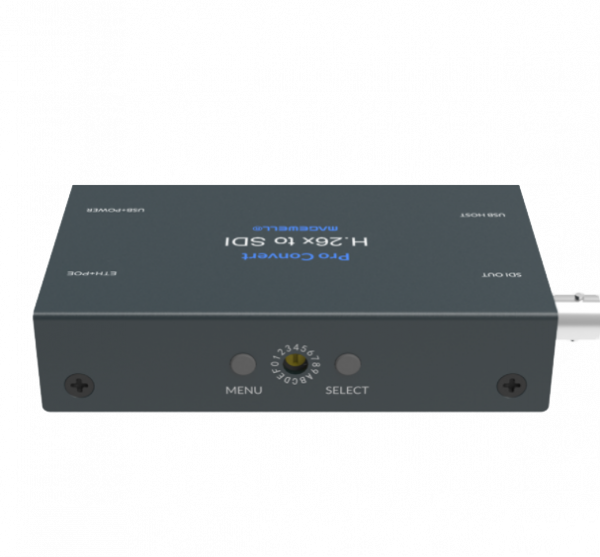

On-board Control Buttons

  • MENU: press to display the menu, or cycle through the options
  • SELECT: press to display the menu, enter current option, or confirm the selection
  • 16 Position Rotary DIP Switch: set board-index from 0 to F

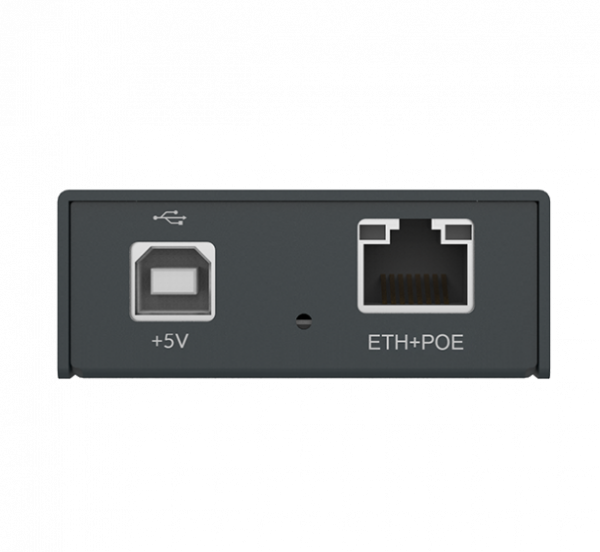

Network Interfaces

  • 10/100/1000Mbps Ethernet
  • IEEE 802.3af PoE

USB Interfaces

  • USB2.0 Type B
    • 5V/2.1A power supply
    • USB RNDIS/ECM
  • USB3.0 Type A
    • Connecting peripherals (keyboard and/or mouse) to customize the video and audio settings

LED Indicators

  • Power LED status indicator
    • On: power connected
    • Off: power unconnected
  • Decode LED status indicator
    • On: decoding
    • Blinks: decoding error
    • Off: source unselected

Form Factor

  • 100.9mm (L) x 60.2mm (W) x 23.3mm (H)

Accessories

  • USB 2.0 A to B cable
  • 5V/2.1A power adaptor
  • L-bracket

Screw Mounting Hole

  • ¼–20 threaded hole

Power Consumption

  • 5V max current: ~1.05A
  • Max power consumption: ~5.5W

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
